Key Features and Specifications of the DNS 8S

Key Features

• Eight channels of dialogue noise suppression
• The latest DNS algorithm and user interface
• A detailed mode ideal for permanent installations
• AES3 fail-safe audio bypass

Audio Specifications

• I/O: AES3 on DB25 AES59 pin-out
• Sample rates: 44.1, 48, 88.2, 96kHz
• I/O resolution: 24-bit
• Process resolution: 40-bit floating point
• Latency: <10 samples (<0.2ms at 48kHz)
• Remote control: Browser based via Ethernet

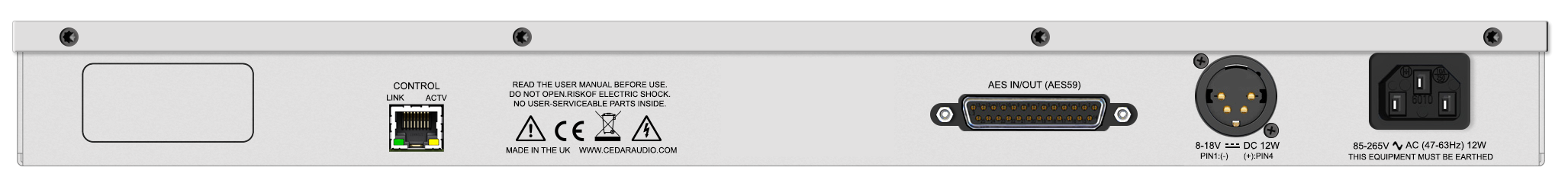

Physical Specifiications

• Mains power: 90-260VAC; 50-60Hz auto-selecting
• DC power: 12VDC using standard 4-pin connector
• Size: 1U rackmount, 20cm depth
• Weight: 3kg

DNS Control System

• Browser-based remote control for laptops, tablets, and other devices
• Not limited to specific operating systems
• Works on almost any browser
• Independent of DAWs

The Company reserves the right to change specifications without notice. E&OE.
