BLADEHyper-Resolution Analyser EQ
Precision Spectrum Analyser and Surgical EQ for Audio Production.
The Hyper-Resolution Analyser EQ

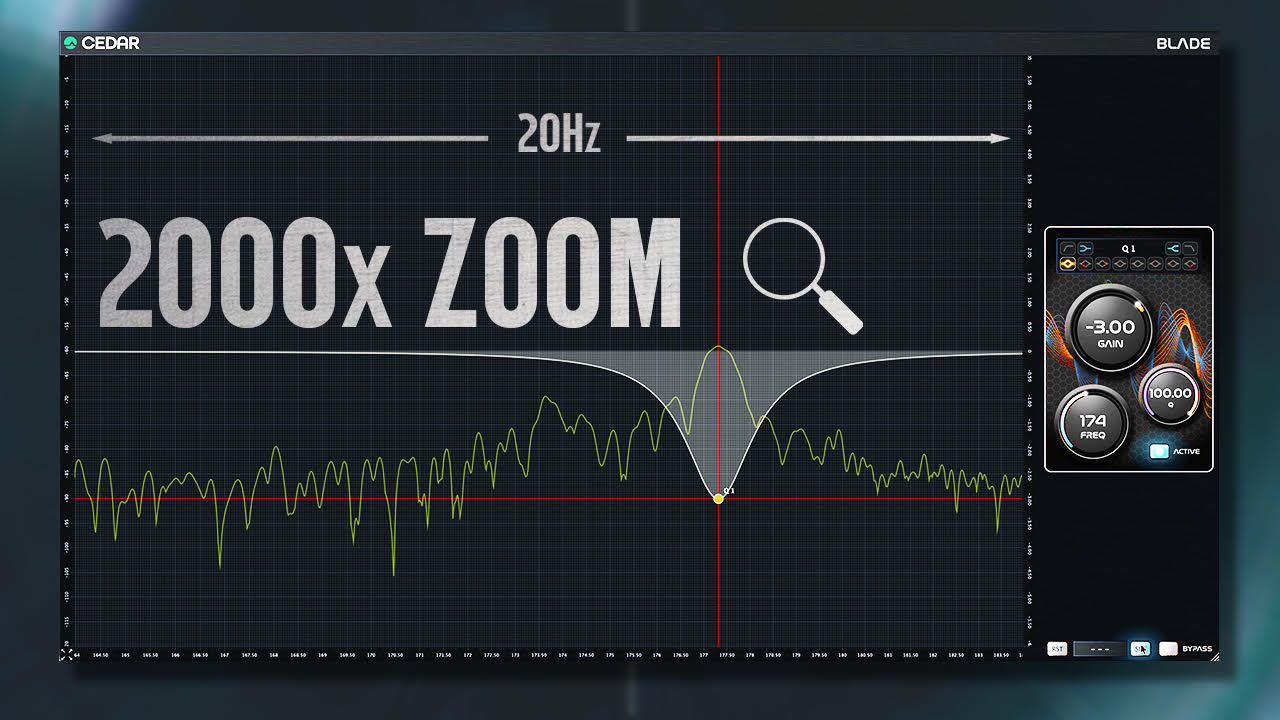

Blade EQ is a fully integrated precision spectrum analyser and IIR EQ, designed to solve your frequency problems with surgical accuracy. It enables you to zoom further into the frequency spectrum than a normal analyser - from the full range down to 20Hz wide at any frequency - revealing narrow resonances, tonal artefacts, and problem frequencies that, at low and mid frequencies, go unseen in traditional analyser views.
With Qs of up to 100, plus high-order low/high pass filters and shelves, Blade enables surgical EQ adjustments, helping you to target specific frequencies while leaving the surrounding audio untouched.

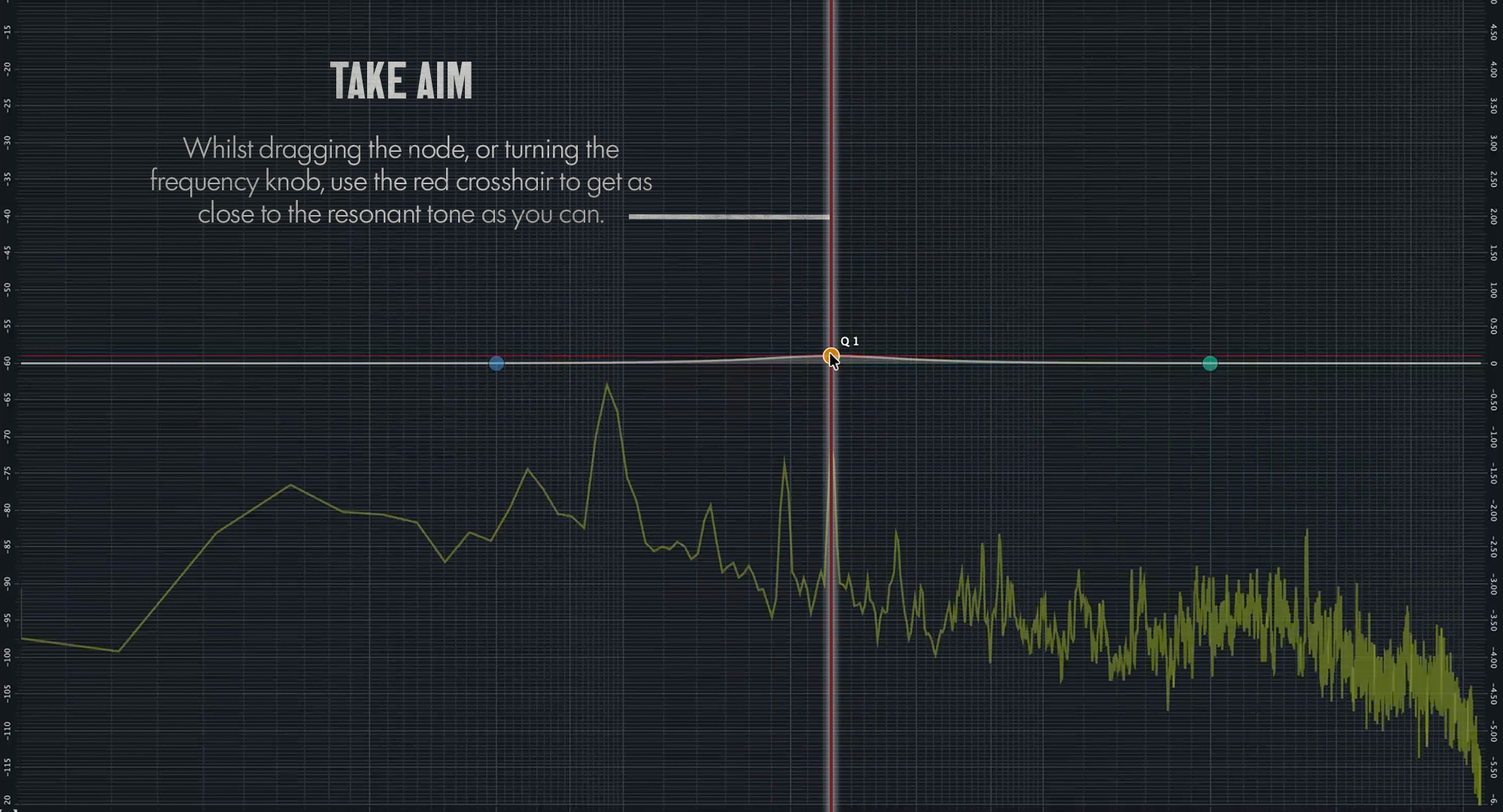

Equalise with Surgical Precision

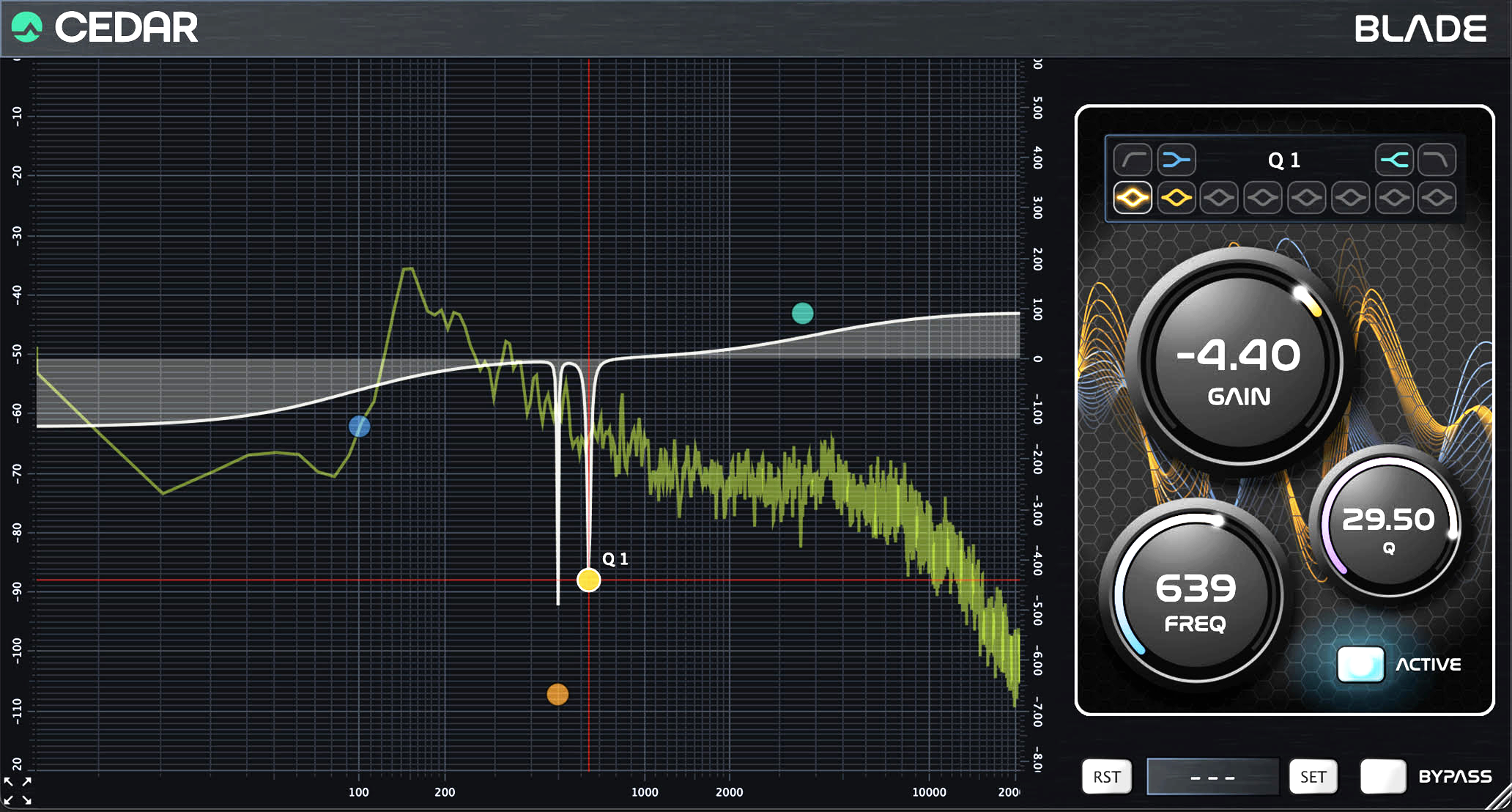

Blade features 12 filters – a high-pass filter, a low-frequency shelf, eight parametric (‘bell curve’) filters, a high-frequency shelf and a low-pass filter. You can activate each of these individually and, as well as being able to control the parameters via the dials on the user interface, you can use the mouse to drag the frequency, gain, Q and slope (as appropriate) of each of them without introducing glitches into the audio. It is fast and intuitive, and gives you maximum control with a minimum of fuss. Blade is also completely free of the pre-echo that occurs with some other EQs, preserving waveforms more effectively.
High Q Factor

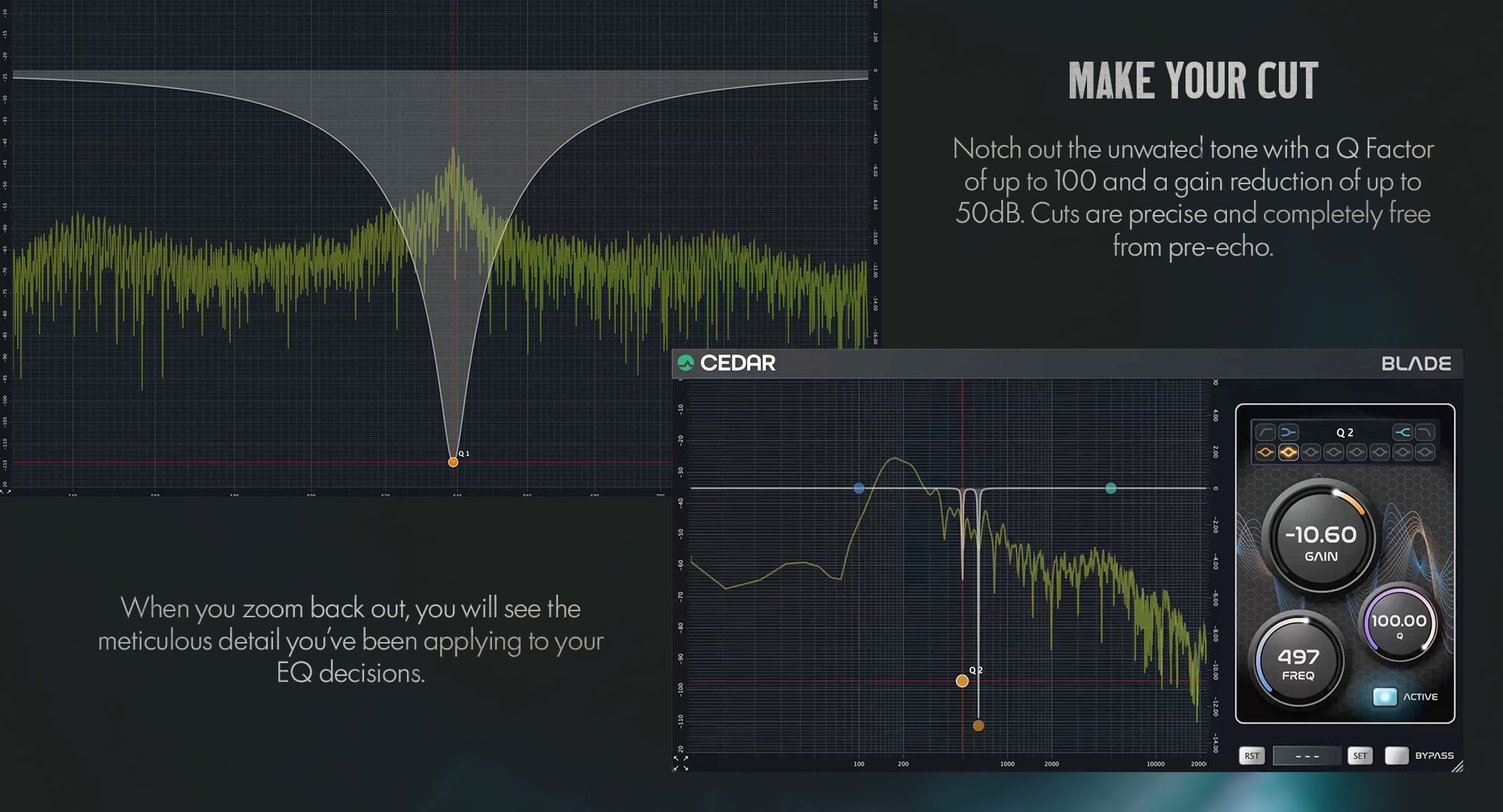

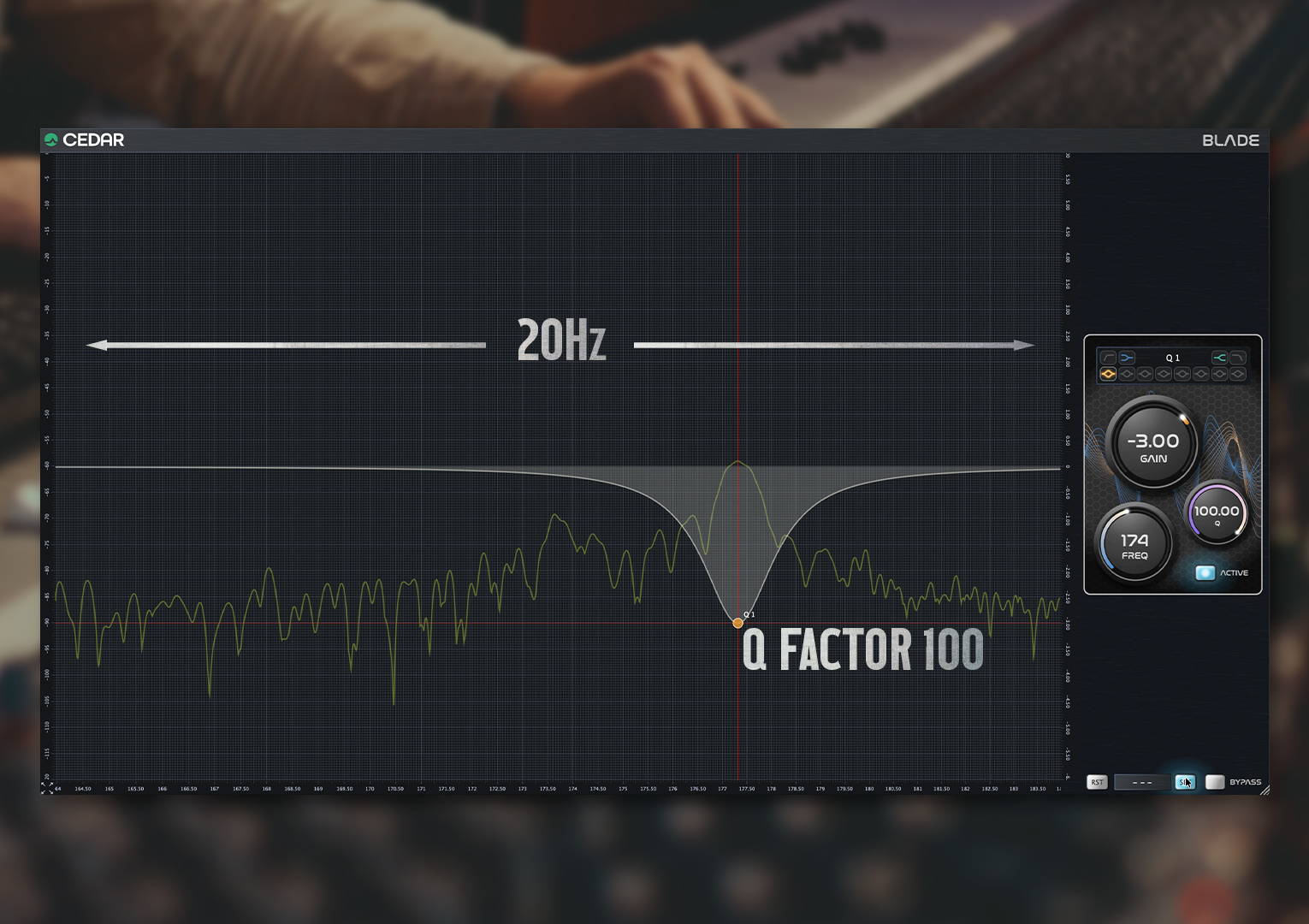

Each of Blade's 'bell curve' filters offers an extremely high Q of up to 100, and a gain boost or reduction of up to 50dB, enabling precise tonal control.
- Ideal for removing constant tones as well as for brick wall filtering.
- Features CEDAR’s unique hyper resolution spectrum analyser, for precise audio analysis.

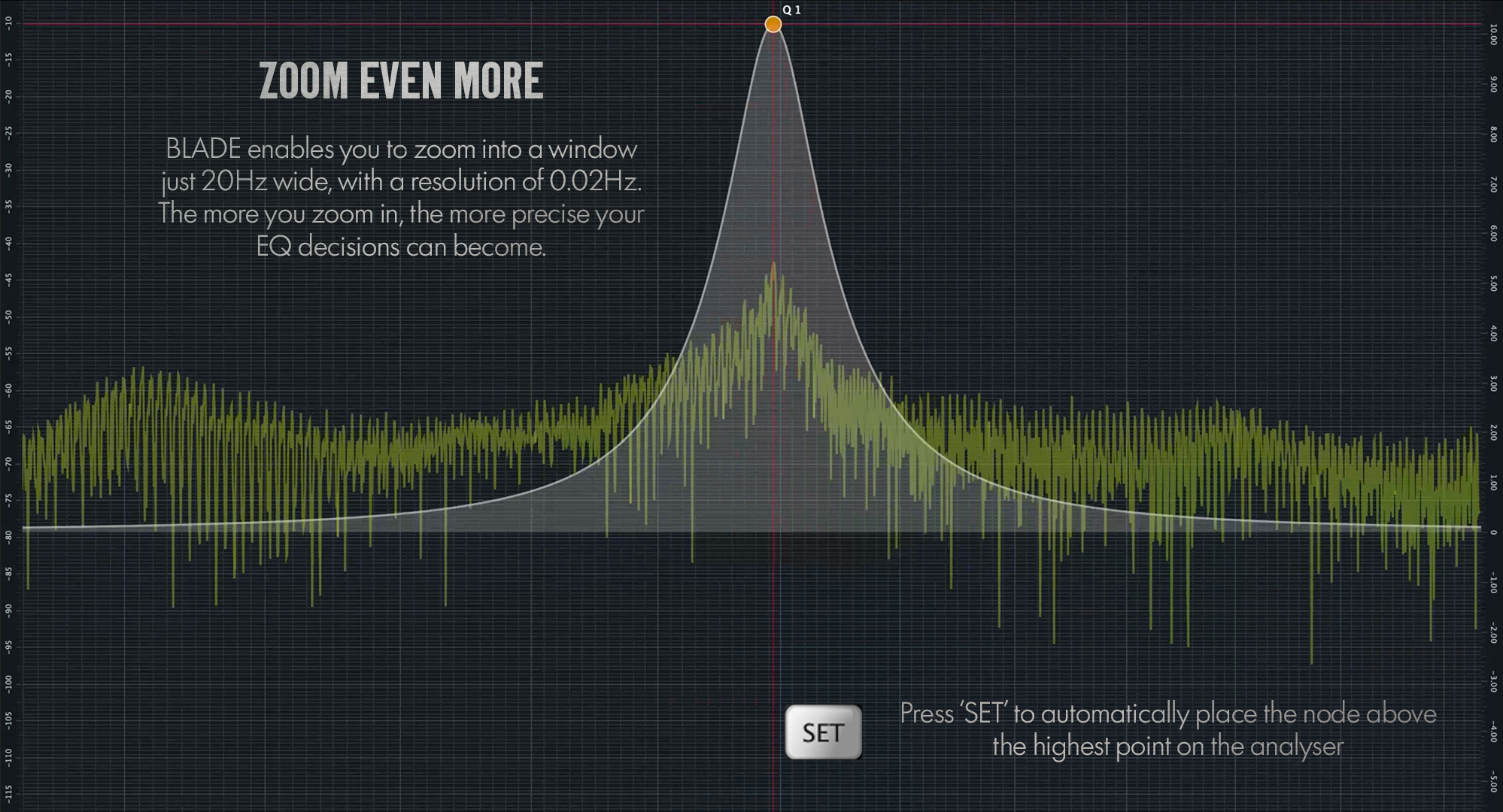

- The analyser offers a maximum resolution of 0.02Hz at any frequency.
- Control the frequency, gain, Q, order and slope of each filter (as appropriate) without introducing glitches into the audio.
- Completely free of the pre-echo that occurs with many other EQs.

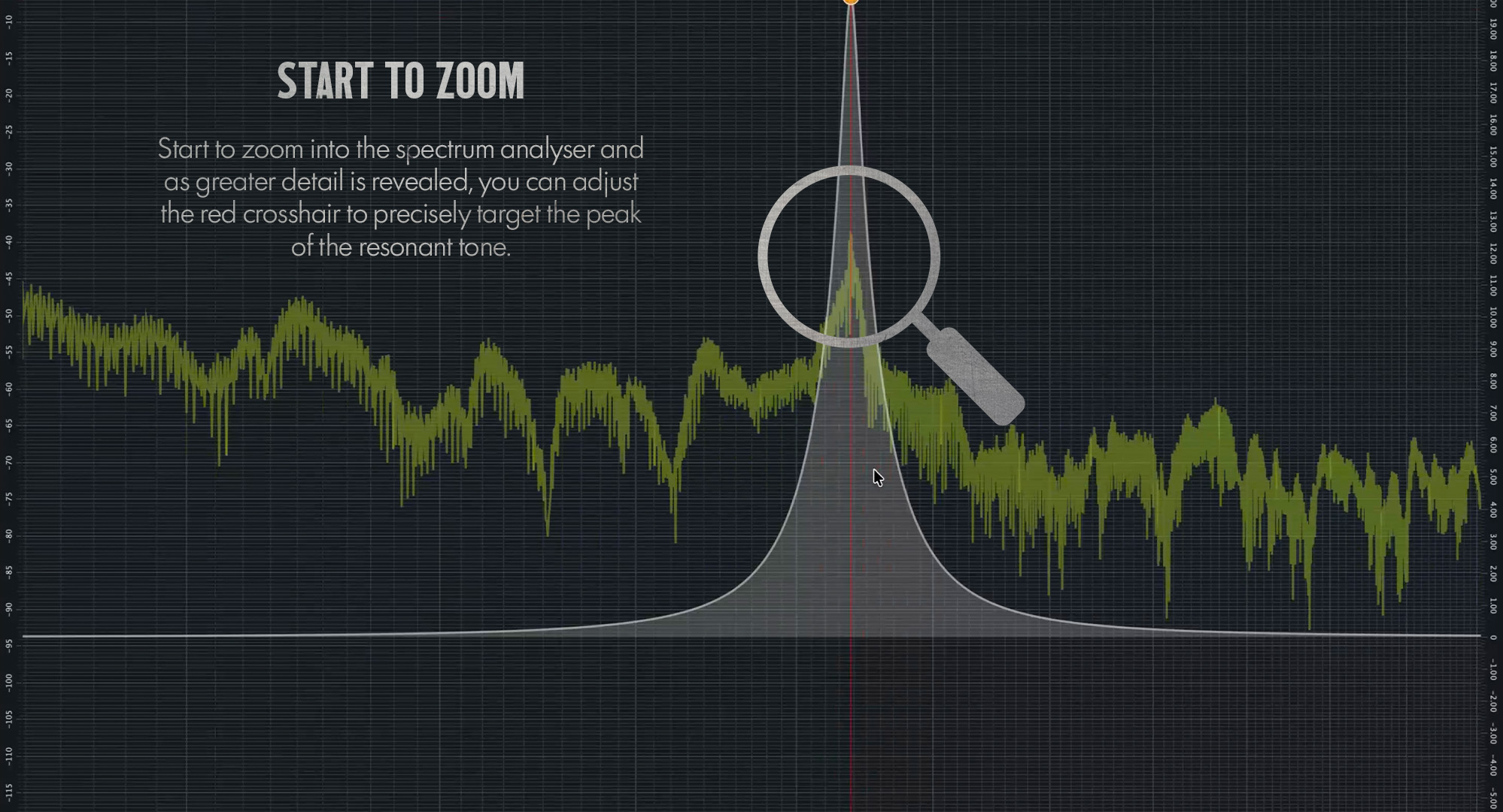

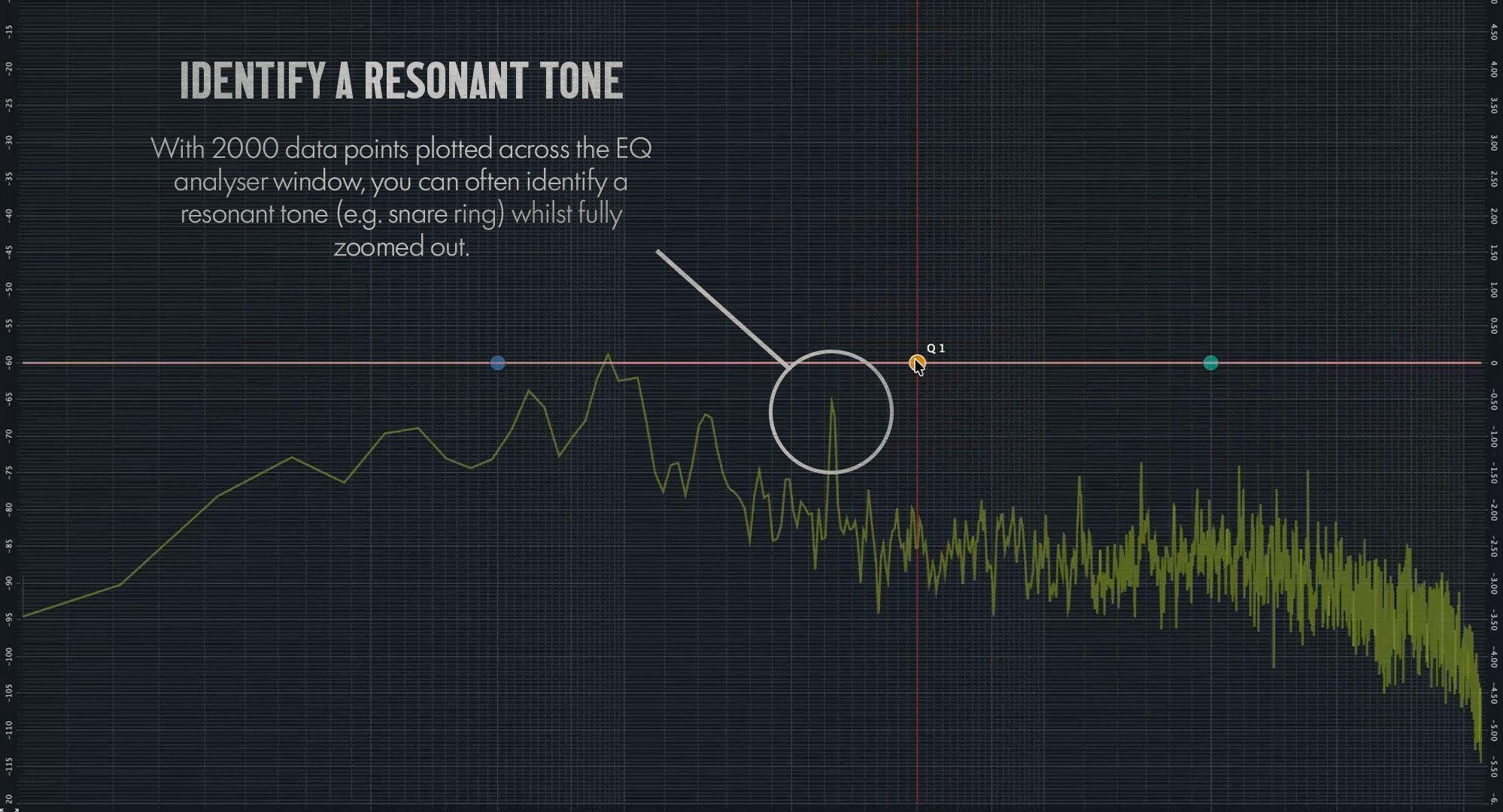

Hyper-Resolution Analyser

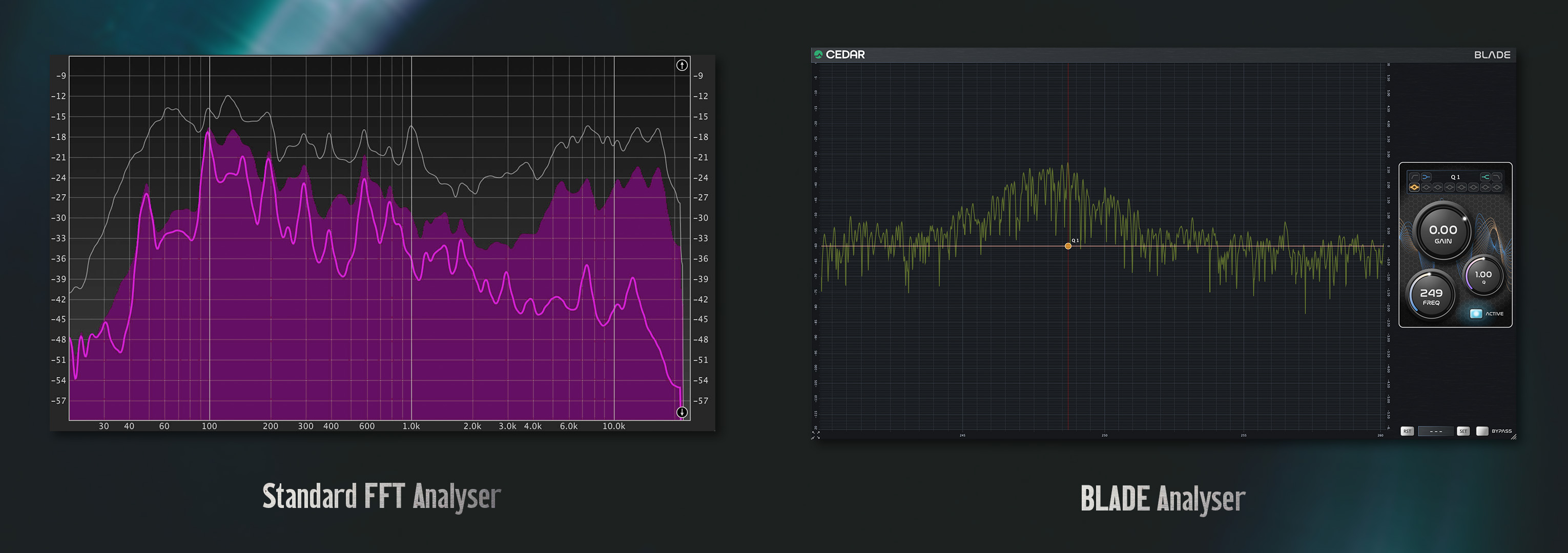

The unique spectrum analyser in Blade is not an FFT analyser, which is what you will find in other audio workstations and plug-ins. These suffer from poor resolution (which is especially limiting at low frequencies) and are not suitable for precise audio analysis.
The Blade analyser is more akin to those found in expensive, dedicated signal analysers and electronic design laboratories, and offers a maximum resolution of 0.02Hz at any frequency. This allows you to identify unwanted tones with almost unparalleled accuracy, and then deal with them as you see fit.
The CEDAR Difference
CEDAR Audio invented spectral editing and real-time audio restoration and has been shaping the sound of modern production for decades — from award-winning restoration tools to cutting-edge adaptive processes.
With Blade EQ, we’ve distilled that heritage into an EQ that redefines what’s possible in precision equalisation.
